TECH NOTES

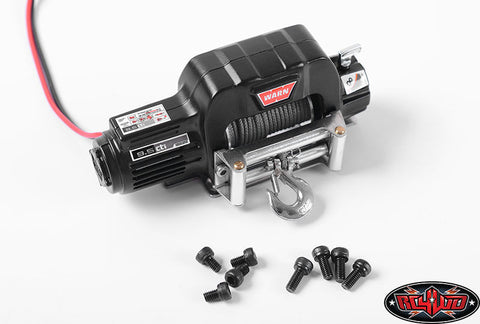

               This is the RC4C 1/10 scale Warn 9.5cti Winch.

FEATURES: Designed for use on 1/10 scale RC crawlers
          Operates on 6-11V battery, can operate on 3S LiPo battery
          Working spring loaded Warn hook with 3' (.9m) synthetic winch rope
          Cast aluminum case
          Stamped steel components
          Easily rebuildable
          Same mounting locations as Bulldog winch
          30 day limited warranty beginning at date of purchase

INCLUDES: RC4C 1/10 scale Warn 9.5cti Winch
          Four M2.5x4mm Socket Head Cap Screws
          Four M2.5x6mm Socket Head Cap Screws
          Warn Decal
          Working spring loaded Warn hook with 3' (.9m) synthetic winch rope

REQUIRES: Wireless Winch Controller Set, RC4C1092 (connects directly to a
            battery) OR
          Wired Winch Control Unit, RC4C1089 (uses radio's 3rd channel)
          Axial SCX10 Chassis mounting requires RC4C1160 Winch Bumper

SPECS:    Length: 2.9" (73.68mm)
          Total Width: 1.25" (31.75mm)
          Height: 1.31" (33.56mm)
          Weight: 2.1oz (60g)
          Load Limits: Dead Lift 6.6lbs (3kgs)
          Load Limits: Rolling Drag 9lbs (4.1kgs)

COMMENTS: Warn and the Warn name are registered trademarks of Warn Industries.
          The Warn logo is property of Warn Industries.

                                                                   jxs 04/16/14
                                                                         ir/jxs

BOX DIMENSIONS:    5.88" W. X   1.38" H. X   7.50" L.
BOX WEIGHT:     .21 LBS.
