TECH NOTES

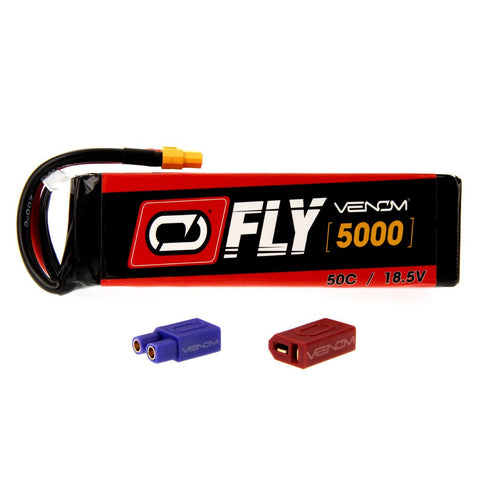

     This is the 5S 18.5V 5000mAh 30C LiPo Fly Battery from Venom-Group.

FEATURES: "A" grade matched cells
          Venom 2.0 Uni Plug system with XT60 plug attached
            Dean's and EC3 plugs included and attach to XT60 plug
          5C fast charge capable

INCLUDES: 5S 18.5V 5000mAh 30C LiPo Fly Battery with Balance Connector
          Venom 2.0 Uni PLug System

REQUIRES: 6S LiPo Compatible Charger
          LiPo Charging Bag

SPECS:    Dimensions: 5.7 x 1.7 x 1.4" (146 x 43 x 37mm)
          Weight: 19.5oz (555g)
          Capacity: 5000mAh
          Continuous Discharge: 30C (150A)
          Max Burst Rate: 50C (250A)
          Min Discharge Volts Per Pack: 15V
          Max Volts Per Pack: 21V
          Suggested Charge: 1C (5A)
          Max Charge: 5C (25A)
          Watt Hours: 92.5
          Energy Density: 162.3 WH/KG
          Discharge Wire Gauge: 14AWG

COMMENTS: ALWAYS use a LiPo-approved charger/balancer
          NEVER Charge over 4.20V per cell
          NEVER Trickle Charge
          NEVER allow to Discharge below 2.5V per cell
          NEVER disassemble or modify pack wiring in any way or puncture cells
          NEVER place on combustible materials or leave unattended during
            Charging
          ALWAYS charge in a fireproof location
          ALWAYS Keep out or reach of children

                                                                   jxs 11/10/15
                                                                         ir/jxs

BOX DIMENSIONS:    2.75" W. X   2.00" H. X   7.13" L.
BOX WEIGHT:    1.42 LBS.
