TECH NOTES

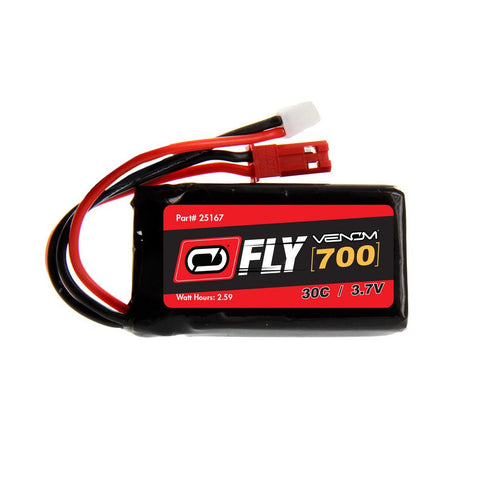

         This is the Venom-Group 1S 3.7V 700mAh 30C LiPo Fly Battery
                        with Micro Losi and JST Plugs.

FEATURES: "A" grade matched cells
          Dual power leads allow flier to adapt to a JST standard plug, or a
            reversed polarity mini-Losi plug that matches many popular micro
            and ultra micro airframes
          5C fast charge capable

INCLUDES: 1S 3.7V 700mAh 30C LiPo Fly Battery with Micro Losi and JST Plugs

REQUIRES: LiPo Compatible Charger
          LiPo Charging Bag

SPECS:    Dimensions: 1.8 x 1 x 0.4" (46 x 25 x 9mm)
          Weight: 0.7oz (18.9g)
          Capacity: 700mAh
          Continuous Discharge: 30C (21A)
          Minimum Discharge Voltage per Pack: 3V
          Max Burst Rate: 60C (42A)
          Max Volts Per Pack: 4.2V
          Max Volts Per Cell: 4.2V
          Suggested Charge: 1C (0.7A)
          Max Charge Rate: 5C (3.5A)
          Plug Type: Micro Losi and JST
          Watt Hours: 2.59
          Wire Gauge: 22 AWG low resistance silicone coated wire

COMMENTS: ALWAYS use a LiPo-approved charger/balancer
          NEVER Charge over 4.20V per cell
          NEVER Trickle Charge
          NEVER allow to Discharge below 2.5V per cell
          NEVER disassemble or modify pack wiring in any way or puncture cells
          NEVER place on combustible materials or leave unattended during
            Charging
          ALWAYS charge in a fireproof location
          ALWAYS Keep out or reach of children

                                                                   jxs 11/11/15
                                                                         ir/jxs

BOX DIMENSIONS:    4.38" W. X    .88" H. X   6.75" L.
BOX WEIGHT:     .11 LBS.
